BUUCTF 每日打卡 2021-8-7

引言

无

[watevrCTF 2019]ECC-RSA

看到标题就有点怕了，ECC椭圆曲线加密，学过一点皮毛，没做过题，找wp 加密代码如下：

from fastecdsa.curve import P521 as Curve
from fastecdsa.point import Point
from Crypto.Util.number import bytes_to_long, isPrime
from os import urandom
from random import getrandbits

def gen_rsa_primes(G):
	urand = bytes_to_long(urandom(521//8))
	while True:
		s = getrandbits(521) ^ urand

		Q = s*G
		if isPrime(Q.x) and isPrime(Q.y):
			print("ECC Private key:", hex(s))
			print("RSA primes:", hex(Q.x), hex(Q.y))
			print("Modulo:", hex(Q.x * Q.y))
			return (Q.x, Q.y)


flag = int.from_bytes(input(), byteorder="big")

ecc_p = Curve.p
a = Curve.a
b = Curve.b

Gx = Curve.gx
Gy = Curve.gy
G = Point(Gx, Gy, curve=Curve)


e = 0x10001
p, q = gen_rsa_primes(G)
n = p*q


file_out = open("downloads/ecc-rsa.txt", "w")

file_out.write("ECC Curve Prime: " + hex(ecc_p) + "\n")
file_out.write("Curve a: " + hex(a) + "\n")
file_out.write("Curve b: " + hex(b) + "\n")
file_out.write("Gx: " + hex(Gx) + "\n")
file_out.write("Gy: " + hex(Gy) + "\n")

file_out.write("e: " + hex(e) + "\n")
file_out.write("p * q: " + hex(n) + "\n")

c = pow(flag, e, n)
file_out.write("ciphertext: " + hex(c) + "\n")

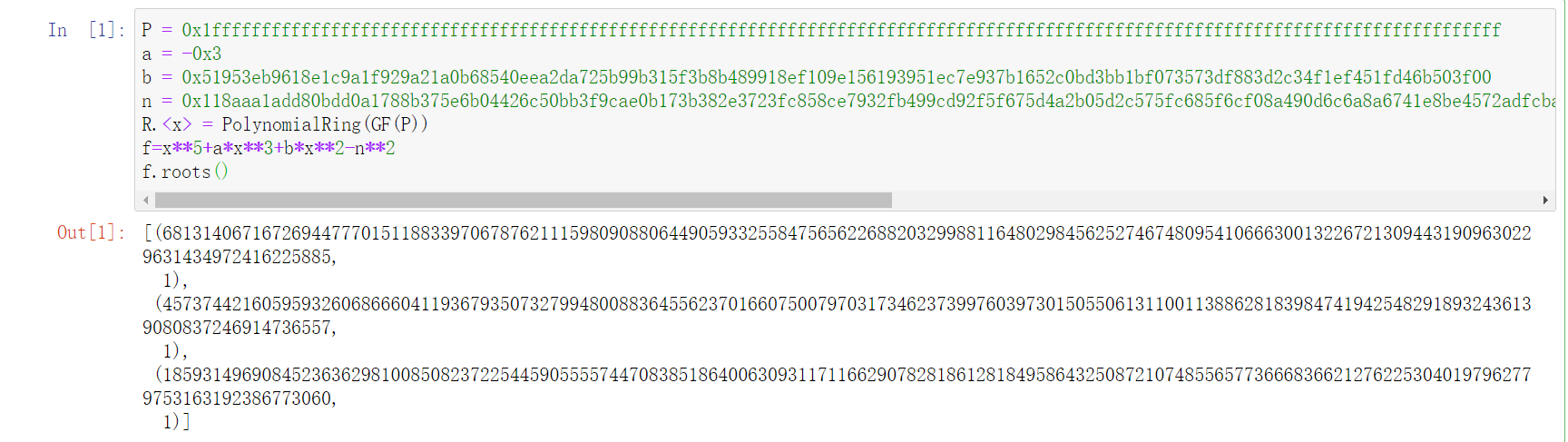

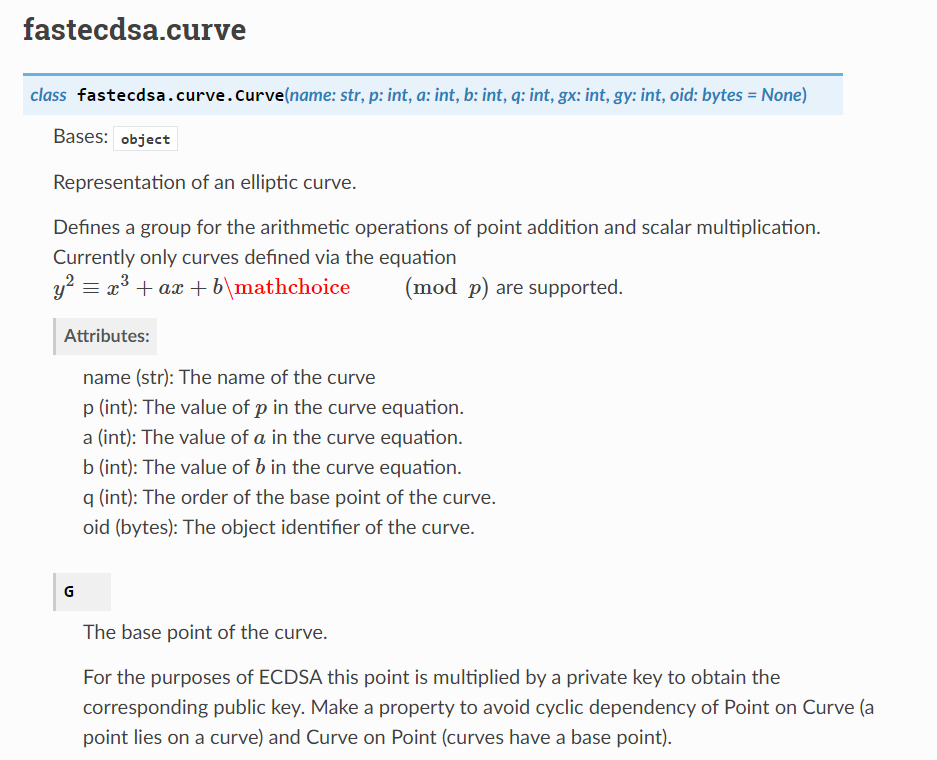

后来发现，关于椭圆曲线加密算法，本题用到的其实就是威尔斯特拉斯方程（Weierstrass）：\(y^2 = x^3 + ax + b\) 代码中a,b就是方程中的a,b，ecc_p指的是椭圆曲线加密算法\(y^2 = x^3 + ax + b(mod\space p)\)，具体可以参照fastecdsa库的官方文档 顺带一提，这个库只能在Linux环境下安装 代码中的G指的是基点，也就是加密最开始的那个点；Gx,Gy即为基点的横纵坐标 然后把G放到生成RSA加密所需的p,q的函数gen_rsa_primes(G)中，先随机生成了一个s，然后Q = s*G中Q也是椭圆曲线上的点，只是在这个阿贝尔群中作数乘运算，其中s应该小于G的阶数 最后，p,q即为Q点的横纵坐标 显然G点满足椭圆曲线方程，而n=pq，其中n为已知量，即有如下方程组： \[ \begin{cases} q^2 = p^3 + ap + b\space(mod\space P)\\ n = pq \end{cases} \] 由于变量重复，记ecc_p为\(P\) 解方程\(n^2 = p^5 + ap^3 + bp^2\space(mod\space P)\)即可得到p sage代码如下： 其中R.<x> = PolynomialRing(GF(P))即为在有限域\(GF(P)\)中求解，其实就是\(mod\space P\)的意思 得到三个解，显然第一和第三个不是质数，只可能是第二个 然后就是常规的RSA解密，解密代码如下：

from Crypto.Util.number import *
import gmpy2

list_p = [6813140671672694477701511883397067876211159809088064490593325584756562268820329988116480298456252746748095410666300132267213094431909630229631434972416225885, 4573744216059593260686660411936793507327994800883645562370166075007970317346237399760397301505506131100113886281839847419425482918932436139080837246914736557, 1859314969084523636298100850823722544590555574470838518640063093117116629078281861281849586432508721074855657736668366212762253040197962779753163192386773060]
for p in list_p:
    print(gmpy2.is_prime(p))

p = 4573744216059593260686660411936793507327994800883645562370166075007970317346237399760397301505506131100113886281839847419425482918932436139080837246914736557
n = 0x118aaa1add80bdd0a1788b375e6b04426c50bb3f9cae0b173b382e3723fc858ce7932fb499cd92f5f675d4a2b05d2c575fc685f6cf08a490d6c6a8a6741e8be4572adfcba233da791ccc0aee033677b72788d57004a776909f6d699a0164af514728431b5aed704b289719f09d591f5c1f9d2ed36a58448a9d57567bd232702e9b28f
q = n//p
c = 0x3862c872480bdd067c0c68cfee4527a063166620c97cca4c99baff6eb0cf5d42421b8f8d8300df5f8c7663adb5d21b47c8cb4ca5aab892006d7d44a1c5b5f5242d88c6e325064adf9b969c7dfc52a034495fe67b5424e1678ca4332d59225855b7a9cb42db2b1db95a90ab6834395397e305078c5baff78c4b7252d7966365afed9e
e = 0x10001

phi = (p-1)*(q-1)
d = inverse(e, phi)
m = pow(c, d, n)
print(long_to_bytes(m))

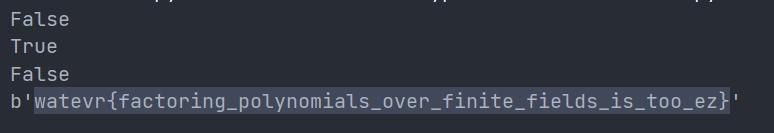

结果为：

结语

终于把1分题刷完了 下一道题还得研究一下 希望继续坚持
